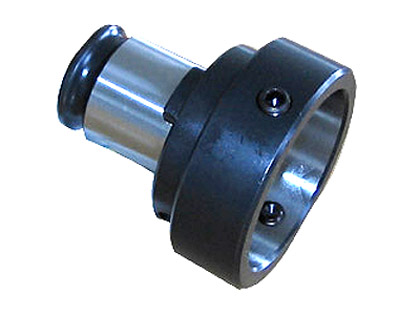

Die holder

Adapter type Die holder Adapter

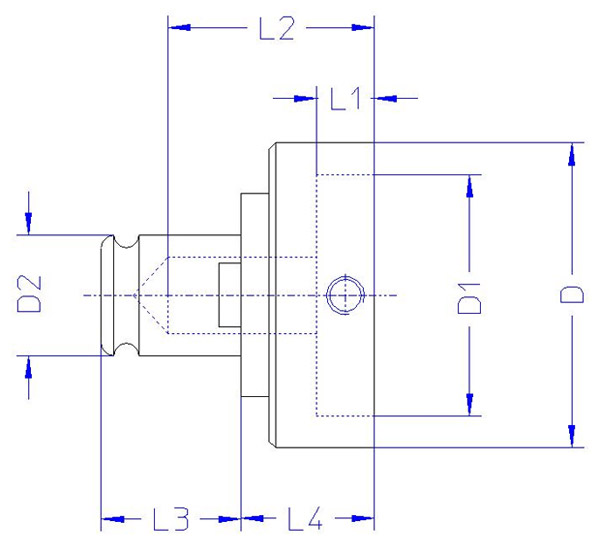

Size		 D D1 D2 D3 L1 L2 L3 L4 Weigth
(kg)
TC 1/Sch 16x5 M1-M2.6 TCS 1B 25 16 19 12,50 4,80 28 21,50 14,00 0.1
TC 1/Sch 20x5 M3-M4 TCS 1B 30 20 19 12,50 4,80 28 21,50 14,00 0.1
TC 1/Sch 20x7 M5-M6 TCS 1B 30 20 19 12,50 6,50 30 21,50 16,00 0.1
TC 1/Sch 25x9 M7-M9 TCS 1B 35 25 19 12,50 8,50 33 21,50 19,00 0.2
TC 1/Sch 30x11 M10-M11 TCS 1B 40 30 19 12,50 10,00 35 21,50 21,00 0.2
TC 1/Sch 38x10 M12x1- M15x1.5 TCS 1B 48 38 19 14,20 9,00 34 21,50 20,00 0.3
TC 1/Sch 38x14 M12-M14 TCS 1B 48 38 19 14,20 13,00 38 21,50 24,00 0.3

TC 2/Sch 20x5 M3-M4 TCS 2B 30 20 31 22,00 4,80 55 35,00 20,00 0.4
TC 2/Sch 20x7 M5-M6 TCS 2B 30 20 31 22,00 6,50 56 35,00 21,50 0.4
TC 2/Sch 25x9 M7-M9 TCS 2B 35 25 31 22,00 8,50 55 35,00 23,50 0.3
TC 2/Sch 30x11 M10-M11 TCS 2B 40 30 31 22,00 10,00 57 35,00 22,00 0.3
TC 2/Sch 38x10 M12x1- M15x1.5 TCS 2B 48 38 31 22,00 9,00 56 35,00 21,00 0.3
TC 2/Sch 38x14 M12-M14 TCS 2B 48 38 31 22,00 13,00 60 35,00 25,00 0.3
TC 2/Sch 45x14 M16x1- M20x2 TCS 2B 57 45 31 22,00 13,00 60 35,00 25,00 0.4
TC 2/Sch 45x18 M16-M20 TCS 2B 57 45 31 22,00 17,00 64 35,00 29,00 0.5

TC 3/Sch 30x11 M10-M11 TCS 3B 60 30 48 25,00 10,00 85 55.5 30,00 0.8
TC3/Sch 38x10 M12x1- M15x1.5 TCS 3B 60 38 48 32,00 9,00 83 55.5 28,00 0.8
TC 3/Sch 38x14 M16-M20 TCS 3B 60 38 48 32,00 13,00 87 55.5 32,00 0.8
TC 3/Sch 45x14 M16x1- M20x2 TCS 3B 60 45 48 37,00 13,00 87 55.5 32,00 0.8
TC 3/Sch 45X18 M18-M20 TCS 3B 60 45 48 37,00 17,00 91 55.5 36,00 0.8
TC 3/Sch 55x16 M21x1- M26x1.5 TCS 3B 72 55 48 37,00 15,00 85 55.5 30,00 0.9
TC 3/Sch 55x22 M22-M24 TCS 3B 72 55 48 37,00 20,00 90 55.5 35,00 1.0
TC 3/Sch 65x18 M27x1- M36x1.5 TCS 3B 82 65 48 37,00 17,00 87 55.5 32,00 1,10
TC 3/Sch 65x25 M27-M36 TCS 3B 82 65 48 37,00 23,00 93 55.5 38,00 1,20
